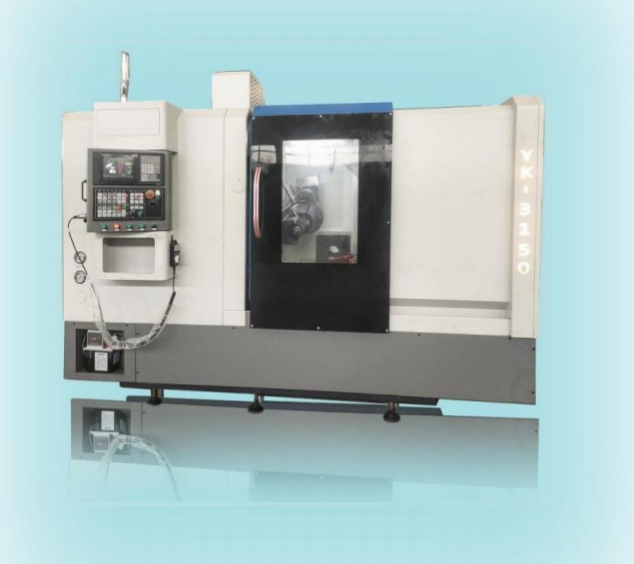

YK3150 CNC Gear Hobbing Machine

Your location： Home > Products > YK3150 CNC Gear Hobbing Machine

Product inquiry hotline: 86-0-18606621888

YK3150 CNC Gear Hobbing Machine is suitable for batch, small batch and single piece production and processing of cylindrical gears and worm gears, as well as short spline shafts with 6 teeth or more with a length less than 300, and sprocket can be hobbed with sprocket hob. When machining cylindrical gears, reverse milling and forward milling and roll cutting can be used, and the full tooth width can be machined by axial feed (vertical feed). The NC hobbing machine hobbes the common worm gear by radial feed. When CNC hobbing machine processes spline shaft and sprocket, the adjustment and processing method of the machine tool are the same as when machining cylindrical spur gear. Widely used in high-precision machining of automobile power parts, transmission bearing gears and high-speed rail balance spline shafts; Its high-precision working characteristics are very suitable for machining high-precision gears, automobile half shafts, automobile transmission shafts and water pump motor shafts.

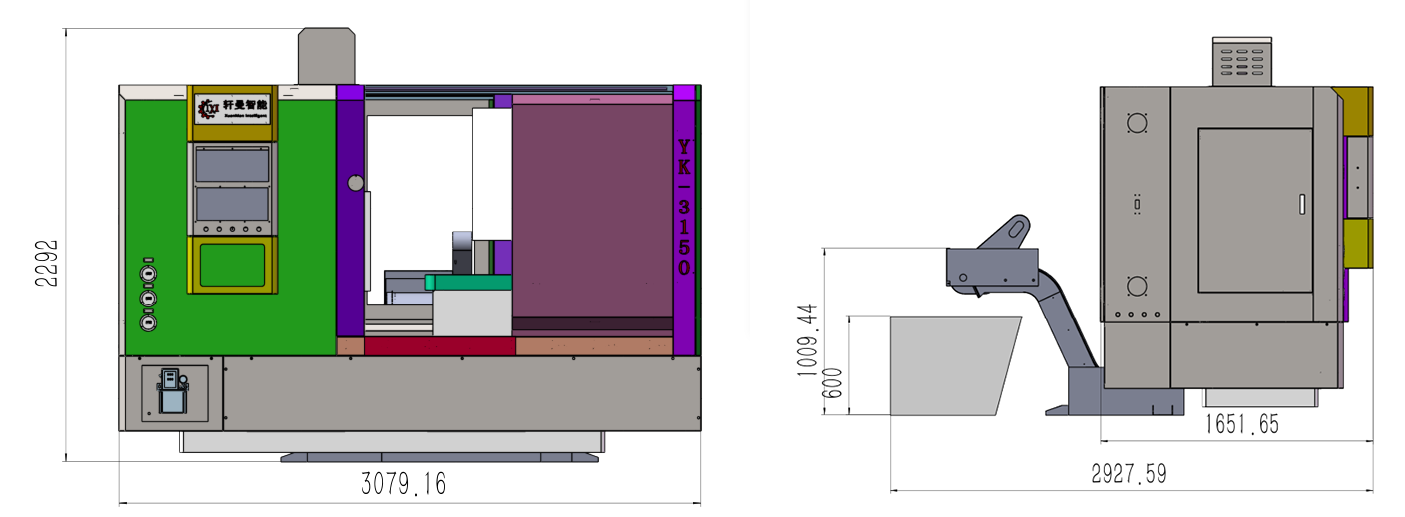

Product structure diagram

外观尺寸图

YK3150 CNC Hobbing Machine is applicable to the field：

1.Automobile industry: used for processing automobile gears to meet the needs of automobile transmission system.

2.Manufacturing of motorcycles and electric tools: used to manufacture gear parts in motorcycles and electric tools.

3.Manufacturing of reducer: used for processing gears in reducer to improve transmission efficiency and performance of equipment.

4.Instrument manufacturing: used to manufacture gear parts in precision instruments.

5.Other mechanical manufacturing: suitable for all kinds of mechanical equipment manufacturing products that need high-precision gears.

Display of finished products:

Copper worm wheel‌

Copper worm gear has excellent conductivity, corrosion resistance, high hardness and wear resistance. Copper worm gear is usually made of tin bronze (such as ZCuSn10P1), which contains 10% tin and 1% phosphorus, and the rest is copper. It has high strength, elasticity and good wear resistance, and is suitable for atmospheric, fresh water and seawater environments. In addition, the copper worm gear has good antifriction and corrosion resistance, and can perform well under high-speed sliding and high-load conditions.

Copper worm gear is suitable for many fields, mainly including pharmaceutical, chemical and food industries. Copper worm wheels are commonly used in these industries for material crushing equipment, such as speed reducer, small crane, crystal ball grinder, lawn mower, elevator, gate, ship machine, automatic door, coal cake machine, woodworking machinery, harvester, printing and dyeing machine, shredder and so on.‌

Chain wheel

Sprocket transmission is suitable for transmission with large center distance and has the characteristics of light weight and low cost. Because the chain has good elasticity and storage capacity of lubricating oil, the sprocket has good buffering capacity and vibration absorption capacity, and can work in harsh environments such as low speed, heavy load, high temperature and dusty. In addition, sprocket drive can ensure accurate transmission ratio and high transmission efficiency (generally up to 0.95~0.97), and the chain does not need great tension, and the load on the shaft and bearing is small.

Sprocket is a kind of wheel with embedded chain teeth, which is used to mesh with the block with accurate pitch on the link or cable. Sprockets are widely used in chemical industry, textile machinery, escalators, wood processing, three-dimensional parking garages, agricultural machinery, food processing, instrumentation, petroleum and other industries.‌

Spline shaft

Spline shaft is a kind of mechanical transmission, which transmits mechanical torque just like flat key, semi-circular key and inclined key. There are longitudinal keyways on the outer surface of the shaft, and the rotating parts sleeved on the shaft also have corresponding keyways, which can keep synchronous rotation with the shaft. While rotating, some can also slide longitudinally on the shaft, such as gear shifting of gearbox. The spline shaft has the advantages of strong bearing capacity, stable transmission, compact structure, high transmission efficiency, convenient installation, high transmission precision, long service life and wide application range.

Spline shafts are widely used, mainly including aircraft, automobiles, tractors, machine tool manufacturing, agricultural machinery and general mechanical transmission devices.

Gear

As a common mechanical transmission element, gear has the characteristics of high transmission precision, high transmission efficiency, wide transmission ratio range, compact structure and so on. At the same time, it has strong wear resistance, strong bearing capacity, low noise, long life and high reliability. ‌‌

As the core component of mechanical transmission, gear plays an irreplaceable role in many key industrial fields. First of all, in the field of machining, gear is an important guarantee for the accurate and stable realization of machine tool action, which can transform the high-speed rotation of motor into the low-speed and high-torque movement required by equipment. Secondly, the automobile field is also inseparable from gears. Whether it is a transmission, a rear axle or a steering gear, gears are needed to realize power transmission and adjustment. In addition, in the aviation field, gears are the key components of engines and various control surfaces, which require extremely high strength, temperature and weight. At the same time, CNC machining in the field of machine tools can not be separated from gears, which can achieve high-precision and high-speed machining through gears with different sizes and proportions. Finally, gear transmission system also plays a vital role in blast furnace and rolling mill in metallurgical field. In a word, gears play a key role in machining, automobile, aviation, machine tools, metallurgy and other fields, and are indispensable elements in industrial development.

NO	Project		Parameter
1	Processing parameters	Working table diameter	510mm
2		Maximum workpiece diameter	550mm
3		Maximum machining modulus	6mm
4		Maximum machining helix angle	±40°
5		Maximum machining length (Z stroke)	320mm
6		Minimum center height from workbench to hob	220mm
7		Maximum speed of workbench	35RPM
8	Hob parameters	Maximum tool installation diameter * length	Φ150*160mm
9		Maximum amount of cutter shifting of hob	200mm
10		Taper hole of tool spindle	Mohs NO.5
11		Distance from tool spindle axis to workbench axis	20-300mm
12		Hob speed series	Infinitely variable speeds
13		Hob speed range	0-600r/min
14		Axial feed series	Stepless feed
15		Axial feed range	0.1-2mm/r
16	Other	Total power of equipment	17.5KW
17		Volume (length * width * height) (mm)	328517822314mm
18		Total weight of machine tool	4.81T
19	Functional part	Control form	system control
20		Transmission form	Electronic gearbox
21		Differential form	Electronic differential
22		Lubrication form	Automatic centralized timing quantitative lubrication
23		Hob material	Cemented carbide/high speed steel
24		Cutting cooling form	Oil cooling
25		Sheet metal form	Full protection car body panel repair
26		Machining gear form	Straight, helical, worm gear
27	Configuration form	Control system	“KND”
28		(C-axis) High-precision servo motor for hob shaft	KND 7.5KW
29		(B-axis) high-precision servo motor for workpiece axis	KND 4.4KW
30		X-direction high precision servo motor	KND 2.3KW
31		Z-direction high precision servo motor	KND 2.3KW
32		(Y-axis) high-precision servo motor for tool shifting shaft	KND 1.0KW
33		Ball screw	Overall grinding P3-P4
34		Worm gear	Double-end
35		Hob mandrel	One set of φ22, φ27, φ32 and φ40 respectively

NO	Working procedure	Superiority	Picture
1	Scraping of contact surface between parts	1. After scraping, the surface flatness is better, the contact is better, and there are more contact points, and it has the function of hardening the surface and strengthening the wear resistance.
1	Scraping of contact surface between parts	2. The scraping surface quality is evaluated by the number of contact points per unit area, and the adopted standard is 12-16 points /25*25mm.
2	Laser interferometer detection	It can analyze the dynamic characteristics of the ball screw of machine tool, the response characteristics of the driving system and the dynamic characteristics of the guide rail, etc., with high accuracy and efficiency, and provide a basis for machine tool error correction.
3	Ball screw drive assembly	In the assembly, the parallelism between the ball screw and the guide rail is adjusted by grinding the screw nut seat, and the control requirement is 0.01 mm/300 mm.
4	Spindle assembly	The assembly process is assembled in a constant temperature workshop to ensure the accuracy and quality in the assembly process. After the assembly, the spindle needs to be tested for abnormal sound and temperature rise before installation, and it can only be installed after it is confirmed that there is no problem.
5	Gear detector checks the accuracy of products processed by hobbing machine.	Gear measuring instruments can measure and evaluate various precision indexes of gears according to the provisions of international and national standards. These indexes include tooth profile deviation, helix deviation, tooth pitch deviation, radial runout and so on.

	NO	Part	Function
Mechanical part	1	Cast	The main parts of machine tools, such as lathe bed, column, workbench and hob base, are made of high-quality gray cast iron with high seismic performance, which is produced by professional enterprises certified by ISO9000 quality system. Special processes are adopted in the casting process to improve the mechanical properties of the materials. The casting has been aged twice to eliminate the residual stress in the material, which has good thermal stability and lasting accuracy stability.
	2	Hob shaft	The hob shaft made by Xuanman is adopted, and the spindle is produced by a professional spindle manufacturer. After carburizing and quenching, the quenched surface layer has compressive stress, which can improve its bending strength and has the characteristics of rotation accuracy, stiffness and speed adaptability. The spindle bearing adopts the high-precision bearing of China famous brand to ensure the spindle has extremely high precision and rigidity; The whole assembly process is completed in the constant temperature workshop, which avoids the precision difference caused by the environment; Rotary speed of hob shaft: 0-600r/min, stepless speed regulation.
	3	Workpiece shaft (Working table)	High-precision six-stage double-headed worm gear transmission is adopted, and the worm gear is made of tin bronze, which has good wear resistance and lubricity. The servo motor gear is differentially decelerated, and the speed is 0-35r/min, with stepless speed change.
	4	Slideway	The hard rail mode is adopted, and the contact surface between the sliding table and the guide rail is scraped. After scraping, the surface flatness is better, the contact is better, and there are more contact points. Moreover, it has the function of hardening the surface to strengthen the wear resistance. Ball screw drive is adopted.
	5	Tailstock	The tailstock center is Morse No.4, which adopts hydraulic pressure, and the pressure can be adjusted.
	6	Hydraulic pump station	Hydraulic and cooling circulation systems are separated to avoid mixing; The hydraulic pump station is equipped with hydraulic oil level alarm, which will remind the staff when it is lower than or higher than the oil level.
	7	Lubrication system	Automatic centralized timing and quantitative automatic oil supply for the lead screw and guide rail makes the machine tool fully lubricated during movement, thus ensuring that the machine tool has excellent fast response characteristics and low-speed feed performance, longer service life and better accuracy retention. And it has the function of fault alarm, and the lubrication program can be automatically executed when it is started.
	8	Chip removal (optional)	The magnetic chip remover can handle metal scrap, fine scrap, cast scrap, etc., and can also adsorb the scrap in cooling oil on the magnetic chip remover, with low energy consumption and high efficiency.
	9	Oil mist separator (optional)	It can effectively remove oil mist and water mist in the air, improve the workshop production environment, prolong the service life of equipment and save costs.
	10	Electric cabinet air conditioner (optional)	Cooling electrical components consumes the heat generated by electric energy, which provides an ideal temperature and humidity environment for the inside of the electrical cabinet. At the same time, it isolates the dust and corrosive gas in the external environment, prolongs the service life of electrical components and greatly improves the reliability of the machine.
	11	Sheet metal and protection	The machine tool adopts fully sealed protective cover to eliminate the pollution of oil mist (or dust) to the production environment during high-speed gear hobbing; The machine tool adopts a new protection design, which solves the problem of oil leakage and oil leakage of the machine tool. At the same time, the L-shaped sliding door is adopted to facilitate the hoisting of parts and the operation and maintenance of the machine tool.
Electrical part	1	System	Kaiendi K1000TF1i customization system can process straight teeth, helical teeth and worm wheels, with filling operation, which is reliable, simple and easy to learn. At the same time, it has a Russian version, and China and Russia can switch freely to meet the needs of different languages.
	2	Actuating motor	KND
	3	Number of axles	Five-axis four-linkage
	4	Gear case	Electronic gearbox
	5	Auto power off	It is an important safety measure, which can automatically cut off the power supply when the cupboard door of electrical equipment is opened, so as to avoid the electric shock accident caused by the operator accidentally touching live components during maintenance or repair.

Standard layout

NO	Name	Factory	Picture
1	Lead screw	JIANGSU QIJIAN
2	Bearing	LUOYANG Bearing research ZYS
3	Principal axis	YUHUAN LIYANG
4	System	KND
5	Electrical machinery	KND
6	Hob arbor	LIHE, CIXI GUTANG
7	Hydraulic pump station	ANHUI QINLI
8	Worm wheel, worm	CHONGQING QIDAYUAN

Optional accessories

序号	名称	厂家	图片	价格
1	Electric cabinet air conditioner	XUZHOU KEHENG 'Ao		¥4,200yuan
2	Oil mist separator	YUHUAN XINXIN		¥8,000yuan
3	Additional price difference caused by replacing the new generation system	SYNTEC		¥8,000yuan
4	Hob mandrels (φ22, φ27, φ32, φ40)	LIHE, CIXI GUTANG		¥1,200yuan/root
5	Chip conveyor	CANGZHOU GAOLONG

1. The quality guarantee period of machine tools and accessories is one year.
2. The quality guarantee period shall come into effect on the date when both parties sign and confirm the final acceptance of the contract goods.
3. During the warranty period, Party B shall provide timely and free maintenance services for all kinds of failures and damages of equipment due to quality reasons, and replace the failed parts free of charge; If Party A stops working due to machine tool failure, Party B shall reply within 8 hours after receiving Party A's notice.
4. After the warranty period of the machine tool, Party B will provide timely technical guidance and spare parts supply at preferential and reasonable prices according to Party A's requirements.
